Product Overview
Accessory
Description
Sun offers replacement seal kits for all cartridge models. These kits include all of the external seals on the cartridge along with installation instructions. Seal kits are available in Buna-N and Viton for all models, along with EPDM and polyurethane for many models. Please note: Converting the external seals from one material to another does not ensure fluid compatibility with that material due to the existence of internal seals within the cartridge.
Specifications
Series 3
Cartridge Thread M36
Valve Hex Size 1 1/4 in.
Valve Installation Torque 150 - 160 lbf ft
Cavity T-23A
Features

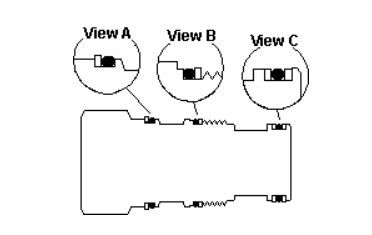

Part Description Quantity View
500-101-120 O-Ring 1 D
500-101-126 O-Ring 2 A,B
500-102-124 O-Ring 1 C
515-102-121 Backup Ring 2 D
515-102-123 Backup Ring 1 C
515-102-126 Backup Ring 3 A,B
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
