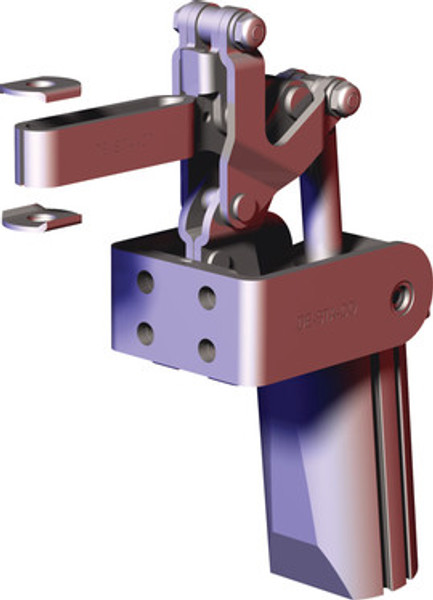

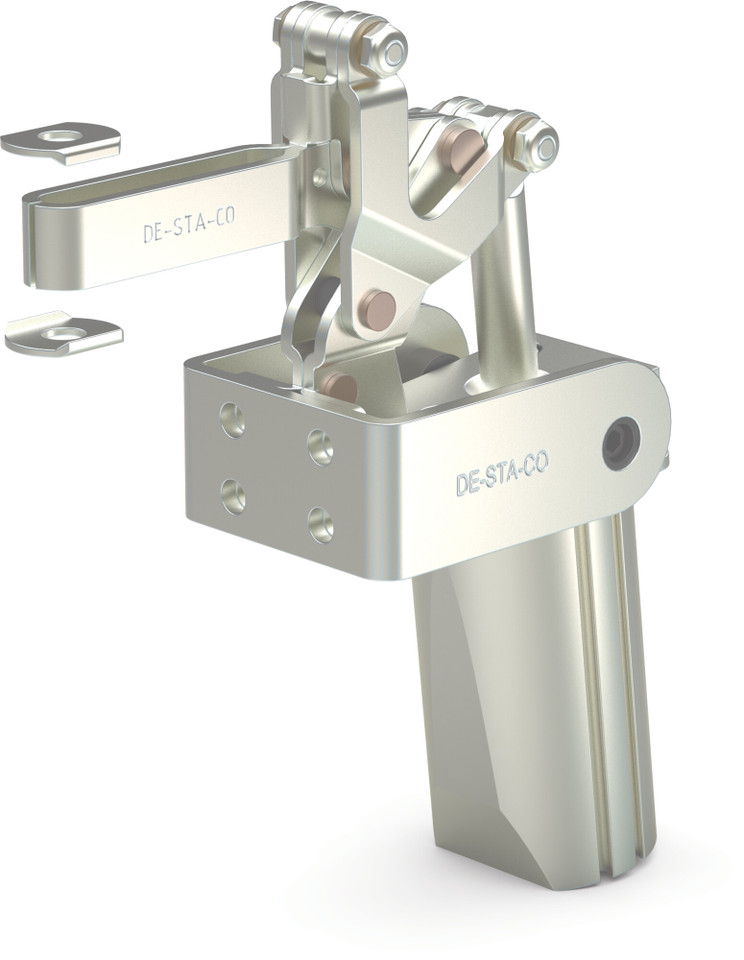

817-U HOLD-DOWN ACTION CLAMP
Description
Pneumatic, toggle clamp version of manual clamp models 317-U and 317-S. Dual mounting surfaces for max flexibility. Built in flow control for smooth operation, magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors.
- Dual mounting surfaces for maximum flexibility.
- Sensor ready for round or %-slot style sensors.
- Built-in flow restriction eliminates need for external flow controls.
- Replacement Clamp Assembly: 817-U-LC
Specifications
-Weight (lb) 2.31
-exerting_force_lbf_english 369.0
-Cylinder Bore (in) 1.26
-Clamp Arm Length (in) 2.37
-Air Consumption (ft³) 0.015
-Height Under Clamp Arm (in) 2.69
-Exerting Force (lbf) 369.0
-Maximum Holding Capacity (lbf) 375.0
-Air Port size 1/8 NPT
-Distributor Group Workholding (Manual, Power and Hydraulic Clamps)
-Application - Assembly Excellent/High
-Operating Temperature -10° to 90°C (-14° to 194° F)
-Replacement Seal Kit 802450-32-1-0
-Clamp Arm Style u-bar
-Application - Welding Fair/Medium
-Product Series 817/827
-Flanged Washers 207107
-Product Function Clamping
-Published Date 1675433542000
-Duty Cycle Fair/Medium
-Product Type Pneumatic Toggle Clamp
