Product Overview

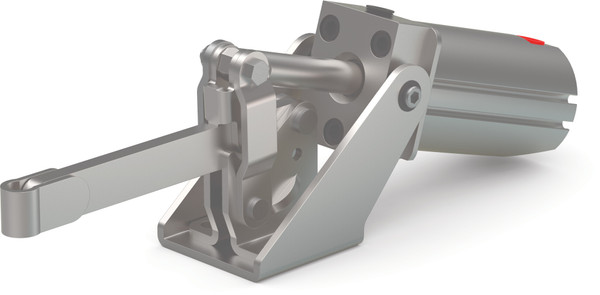

807-S PNEUMATIC TOGGLE CLAMP
Description
Pneumatic, toggle clamp version of Destaco's manual clamp models 207-U and 207-S. Pneumatic cylinder features built in flow control for smooth operation and magnetic ring piston for position sensing. Accommodates either T-slot (8EA-109-1) or round (810169) sensors.
- Sensor ready for round or T-slot sensors.
- Built-in flow restriction eliminates need for external flow controls.
- Pneumatic version of 207 manual toggle clamp.
- Supplied with bolt retainer.
- Replacement Clamp Assembly: 807-S-LC.
Specifications
-Clamp Arm Length (in): 3.13
-Weight (lb): 1.66
-Cylinder Bore (in): 1.26
-Air Consumption (ft³): 0.015
-Height Under Clamp Arm (in): 1.38
-Exerting Force (lbf): 540.0
-exerting_force_lbf_english: 540.0
-Maximum Holding Capacity (lbf): 500.0
-Clamp Arm Style: solid
-Bolt Retainer: 207105
-Product Series: 807
-Operating Temperature: -10° to 90°C (-14° to 194° F)
-Product Function: Clamping
-Published Date: 1675434860000
-Port: Standard Ports
-Air Port size: 1/8 NPT
-Product Type Pneumatic: Toggle Clamp
-Replacement Seal Kit: 802450-32-1-00
-Distributor Group: Workholding (Manual, Power and Hydraulic Clamps)
Features
-Application – Assembly: Excellent/High
-Application – Welding: Fair/Medium
-Duty Cycle: Fair/Medium
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
