Product Overview

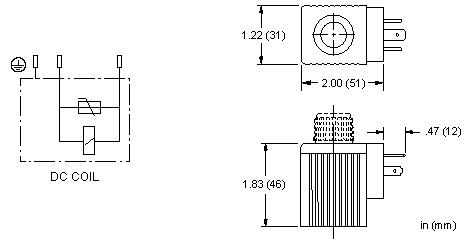

Accessory
Description
Coil windings utilize Class N, (392° F [200 °C] rated) magnet wire.
A TVS surge suppression diode is built into DC coils. Nominal breakdown voltage: 68V. Model code 1.5 KE68CA Steady state power dissipation @ 75°C is 6.5 W and peak pulse dissipation is 1500 W for 1 ms, nonrepetitive.
Power cable with mating connector is required and is not included with product.
The Deutsch DT04-2P connector satisfies the requirements of thermal shock tests. In this test, the coil is energized to achieve its stabilized temperature and then immediately immersed into ice cold water. This process is repeated 5 times, after which, the insulation resistance of the coils should not fall below 10 megohms.
The coil is magnetically symmetrical and can be mounted in either direction on the solenoid tube without affecting performance.
Specifications
For optimum proportional performance, an amplifier with current sensing and adjustable dither should be used. Dither should be adjustable between 100 - 250 Hz.
IP rating is dependent on the coil connector and the mating connector used.
RoHS compliant. Restricted materials less than 0.1% total by weight.
The external steel shell is plated with clear zinc trivalent.
Features
Maximum Coil Temperature at 68ºF (20ºC) Ambient- 218ºF (105ºC)
Arc Suppression (TVS) -Included
Power Consumption (cold) - at rated voltage- 22 watts
Maximum Ambient Temperature- 122 °F
Voltage/Frequency -24 VDC
Operating Voltage Range- +/- 10% nominal
Duty Cycle Rating- 100 %
Connector- Deutsch DT04-2P
Connector Environment Rating- IP69K
Solenoid Tube Diameter- .75 in.
Coil Nut Torque- 4.5 lbf in.
Model Weight- 0.53 lb.
