Description
-Coil windings utilize Class N, (392° F [200 °C] rated) magnet wire.
-A TVS surge suppression diode is built into DC coils. Nominal breakdown voltage; 250V.Model code 1.5 KE250CA. Steady state power dissipation @ 75°C is 6.5 W and peak pulse dissipation is 1500 W for 1 ms, nonrepetitive.
-Power cable with mating connector is required and is not included with product.

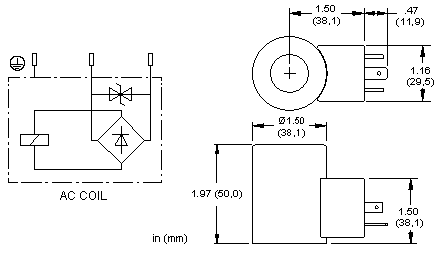

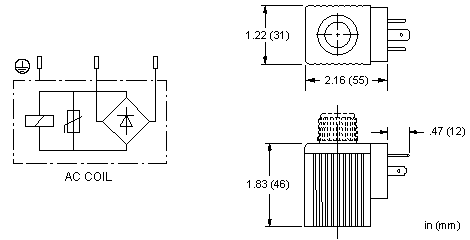

-Alternating current (AC) coils are DC coils that contain an integral full wave rectifier, model code 2W10G, molded into the coil. Because of this, there is no pull-in current and coils don't burn out if something prevents the valve from shifting.
Specifications
Maximum Coil Temperature at 68ºF (20ºC) Ambient : 218ºF (105ºC)Arc Suppression (TVS): IncludedPower Consumption (cold) - at rated voltage: 22 wattsMaximum Ambient Temperature: 122 °FVoltage/Frequency: 115 VAC 50/60 HzOperating Voltage Range: +/- 10% nominalDuty Cycle Rating: 100 %Connector: ISO4400 - EN/DIN175301-803, Form A (ISO/DIN 43650) 3-pinConnector Environment Rating: IP65/IP67Solenoid Tube Diameter: .75 in.Coil Nut Torque: 4.5 lbf in.Model Weight: 0.55 lb.
Features
-The coil is magnetically symmetrical and can be mounted in either direction on the solenoid tube without affecting performance.
-This coil is CE compliant. It meets the requirements of the Low Voltage Directive (2006/95/EC) and EN 60204-1:2006.
-IP rating is dependent on the coil connector and the mating connector used.
-RoHS compliant. Restricted materials less than 0.1% total by weight.
-The external steel shell is plated with clear zinc trivalent.
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
