Product Overview
Accessory

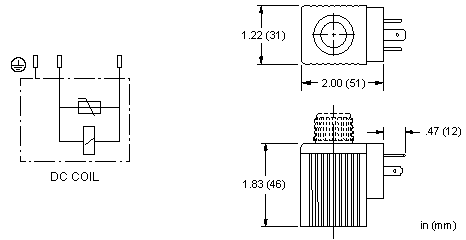

Description
-Coil windings utilize Class N, (392° F [200 °C] rated) magnet wire.
-Power cable with mating connector is required and is not included with product.
-Encapsulating material: Mineral filled, glass fiber reinforced, epoxy molding compound.
-A metal oxide varistor, SIOV-S07K35, for surge suppression is molded directly into the coil to protect the connected electrical circuits from inductive transients.
-The coil is magnetically symmetrical and can be mounted in either direction on the solenoid tube without affecting performance.
-IP rating is dependent on the coil connector and the mating connector used.
-RoHS compliant. Restricted materials less than 0.1% total by weight.
Specifications
Maximum Coil Temperature at 68ºF (20ºC) Ambient: 218ºF (105ºC)Arc Suppression (TVS): IncludedPower Consumption (cold) - at rated voltage: 12 wattsVoltage/Frequency: 24 VDCOperating Voltage Range: +/- 20% nominalDuty Cycle Rating: 100 %Connector: ISO4400 - EN/DIN175301-803, Form A (ISO/DIN 43650) 3-pinConnector Environment Rating: IP65Solenoid Tube Diameter: .56 in.Coil Nut Torque: 4.5 lbf in.Model Weight: 0.32 lb.
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
