Product Overview
Accessory
Description
-Coil windings utilize Class N, (392° F [200 °C] rated) magnet wire.
-Power cable with mating connector is required and is not included with product.
-Encapsulating material: Mineral filled, glass fiber reinforced, epoxy molding compound.

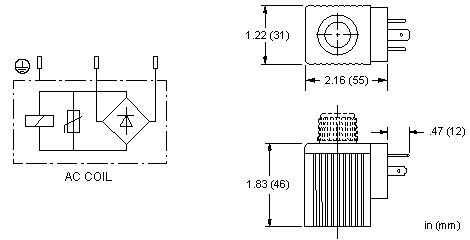

-Alternating current (AC) coils are DC coils that contain an integral full wave rectifier, model 2KPB10M, molded into the coil in addition to an MOV, model SIOV-S10K-130, for surge suppression. Because of this, there is no pull-in current and coils don't burn out if something prevents the valve from shifting.
-The coil is magnetically symmetrical and can be mounted in either direction on the solenoid tube without affecting performance.
-IP rating is dependent on the coil connector and the mating connector used.
-RoHS compliant. Restricted materials less than 0.1% total by weight.
Specifications
Maximum Coil Temperature at 68ºF (20ºC) Ambient: 218ºF (105ºC)Arc Suppression (TVS): IncludedPower Consumption (cold) - at rated voltage: 12 wattsVoltage/Frequency: 115 VAC 50/60 HzOperating Voltage Range: +/- 20% nominalDuty Cycle Rating: 100 %Connector: ISO4400 - EN/DIN175301-803, Form A (ISO/DIN 43650) 3-pinConnector Environment Rating: IP65Solenoid Tube Diameter: .56 in.Coil Nut Torque: 4.5 lbf in.Model Weight: 0.32 lb.
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
