Product Overview

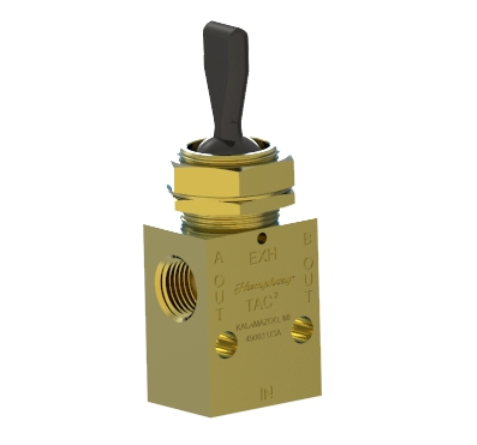

Humphrey Product
Description
Three position, four way miniature toggle valve, detented, with 1/8 pipe ports.
TAC three position toggle valves feature a lever above a 5/8-32 threaded collar.
Feature permits easy panel mounting. Toggle design prevents valve overstroke.
Compact. Rugged.
Specifications
Media Air
Valve Function 4-way Detented, Exhaust Center
Piping Type Inline, Direct Piping
Port Size 1/8 NPSF
Number of Ports 4 ports
Number of Positions 3 positions
Options Included 5/8-32 Thread Panel Mounting Hardware
Approx Size (in) HxWxD 2.38 x 0.63 x 0.88
Type of Operation Toggle
Flow - SCFM @ 100 psig 7.5
Flow - LPM @ 6.9 bar 212
ESEOD (orifice) - in (mm) 0.082 (2.07)
Flow Coefficient (Cv) 0.12
Lubrication Recommended
Pressure Range (psi) 0-125
Ambient Temperature Range (°F) -20~180
Wetted Materials Brass, SST, Buna N
Weight (oz) 3.0
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
