Product Overview

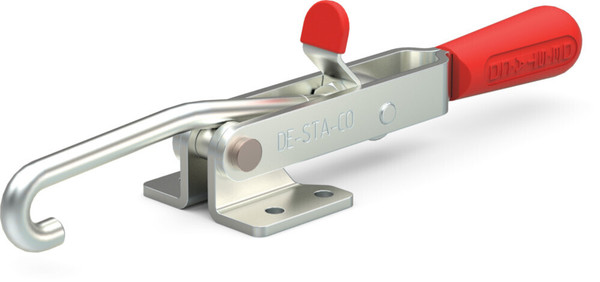

351 CLAMP PULL-ACTION
Description
Destaco's line of pull action latch clamps is excellent for many types of latching operations. The pull bar is threaded for easy adjustment.
- Supplied with threaded J-Hook for easy adjustment.
- Patented Thumb Control Lever provides one-handed operation.
- Longer hook lengths available.
Specifications
-Weight (lb): 0.62
-Drawing Movement with Thumb Control: 2.75
-Max Hook Adjustment (in): 0.43
-Maximum Holding Capacity (lbf): 375
-Drawing Movement without Thumb Control (in): 4.17
-Base Mounting Style: Flange
-Replacement Hook Assembly: 351215
-Product Type: Standard
-Hook Adjustable Range: 12.4
-Product Series: 330/351/371/381
-Hook Typ:e J-Hook
-Ef:Af Exerting Force: Applied Force ((pushing/pulling)) 21:1
-Product Function: Clamping
-Distributor Group: Workholding (Manual, Power and Hydraulic Clamps)
-Toggle Lock Plus: No
-Standard Material: Steel
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
