Product Overview

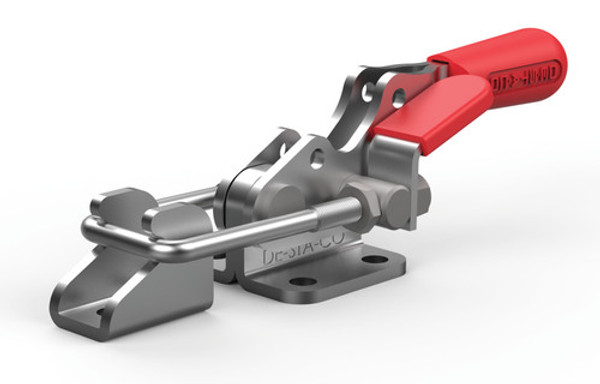

331-SS CLAMP PULL-ACTION
Description
Threaded U-Bolt permits easy adjustment. Ideal for latching applications on molds, doors, lids, access covers, drums, containers, vessels.
- Stainless Steel.
- Thumb-control lever for single handed usage.
- Threaded hook with easy adjustment.
- Supplied with threaded U-hooks for easy adjustment.
- Latch plate included.
- Optional hook lengths available.
Specifications
Drawing Movement without Thumb Control (in): 1.78
-Weight (lb): 0.55
-Maximum Holding Capacity (lbf): 700.0
-Max Hook Adjustment (in): 0.59
-Ef:Af Exerting Force: Applied Force ((pushing/pulling)): 32:1
-Distributor Group: Workholding (Manual, Power and Hydraulic Clamps)
-Product Function: Clamping
-Product Series: 323/331/341
-Replacement Hook Assembly: 331915
-Hook Adjustable Range: 22.1
-Latch Plate Supplied?: Yes
-Latch Plate: 331905
-Hook Type: U-Hook (Horizontal)
-Standard Material: Stainless Steel
-Base Mounting Style: Flange
-Published Date: 1673986007000
-Product Type: Pull-Action Latch Clamps
-Toggle Lock Plus: No
-Product Type: Standard
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
