Product Overview

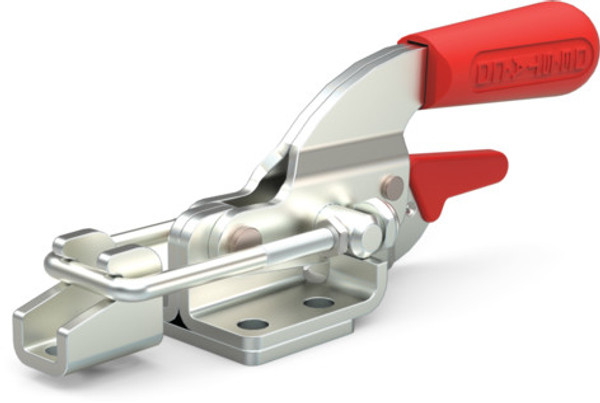

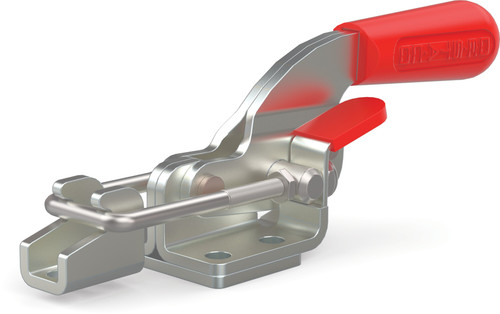

331 CLAMP PULL-ACTION
Description
Threaded U-Bolt permits easy adjustment. Ideal for latching applications on molds, doors, lids, access covers, drums, containers, vessels.
- Thumb-control lever for single handed usage.
- Threaded hook with easy adjustment.
- Supplied with threaded U-hooks for easy adjustments.
- Latch plate included.
Specifications
-Weight (lb): 0.55
-Maximum Holding Capacity (lbf): 700.0
-Drawing Movement without Thumb Control (in): 1.78
-Max Hook Adjustment (in:) 0.59
-Hook Type: U-Hook (Horizontal)
-Product Type: Standard
-Standard Material: Steel
-Product Series: 323/331/341
-DistributorGroup: Workholding (Manual, Power and Hydraulic Clamps)
-Toggle Lock Plus: No
-Product Function: Clamping
-Ef:Af Exerting Force: Applied Force ((pushing/pulling)) 32:1
-Latch Plate Supplied?: Yes
-Base Mounting Style: Flange
-Published Date: 1690573761000
-Replacement Hook Assembly: 331215
-Hook Adjustable Range: 22.1
-Latch Plate: 331005
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
