Product Overview

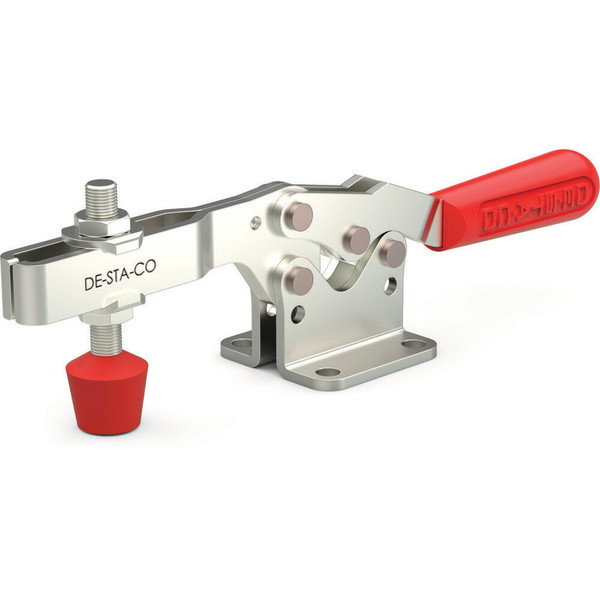

235-U CLAMP HOLD-DOWN ACTION
Description
Minimum overhead clearance is required for this low profile clamp.
- Clamp supplied with neoprene spindle.
- Low profile.
Specifications
Weight (lb): 1.48
-Clamp Arm Length (in): 4.17
-Height Under Clamp Arm (in): 1.69
-Maximum Holding Capacity (lbf): 750
-Handle: Horizonal
-Duty Cycle: 2
-Clamp Bar Opening (+10°) (degrees): 92
-DistributorGroup: Workholding (Manual, Power and Hydraulic Clamps)
-Handle Opening (+10°): 70
-Toggle Lock Plus: No
-Base Mounting Style: Flange
-Spindle Assembly: 240208-M
-Standard Material :Steel
-Clamp Arm Style: U-Bar
-Product Function: Clamping
-Accommodates Workpiece Variation: No
-Flanged Washers: 235106
-Product Series: 235
Features
Application – Welding: Fair/Medium
-Application - Food Processing: Fair/Medium
-Application – Closures: Excellent/High
-Application - Checking Fixtures: Excellent/High
-Application – Assembly: Excellent/High
-Application - Wood-Working: Excellent/High
-Application – Machining: Poor/Low
-Service Environment: Normal
-Product Type: Standard
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
