Product Overview

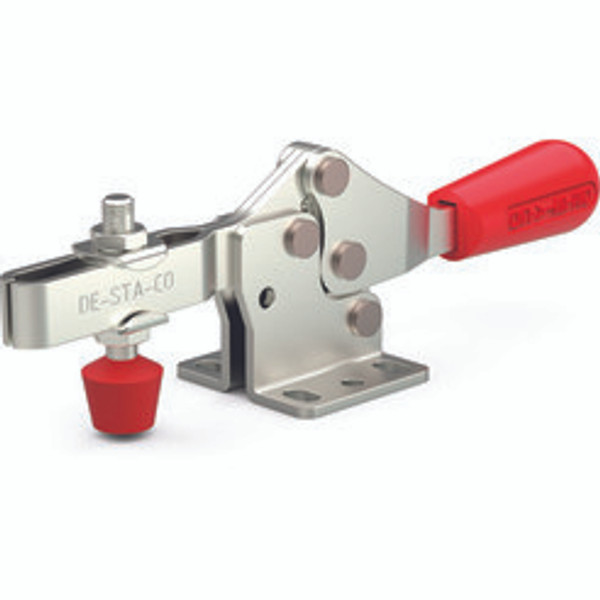

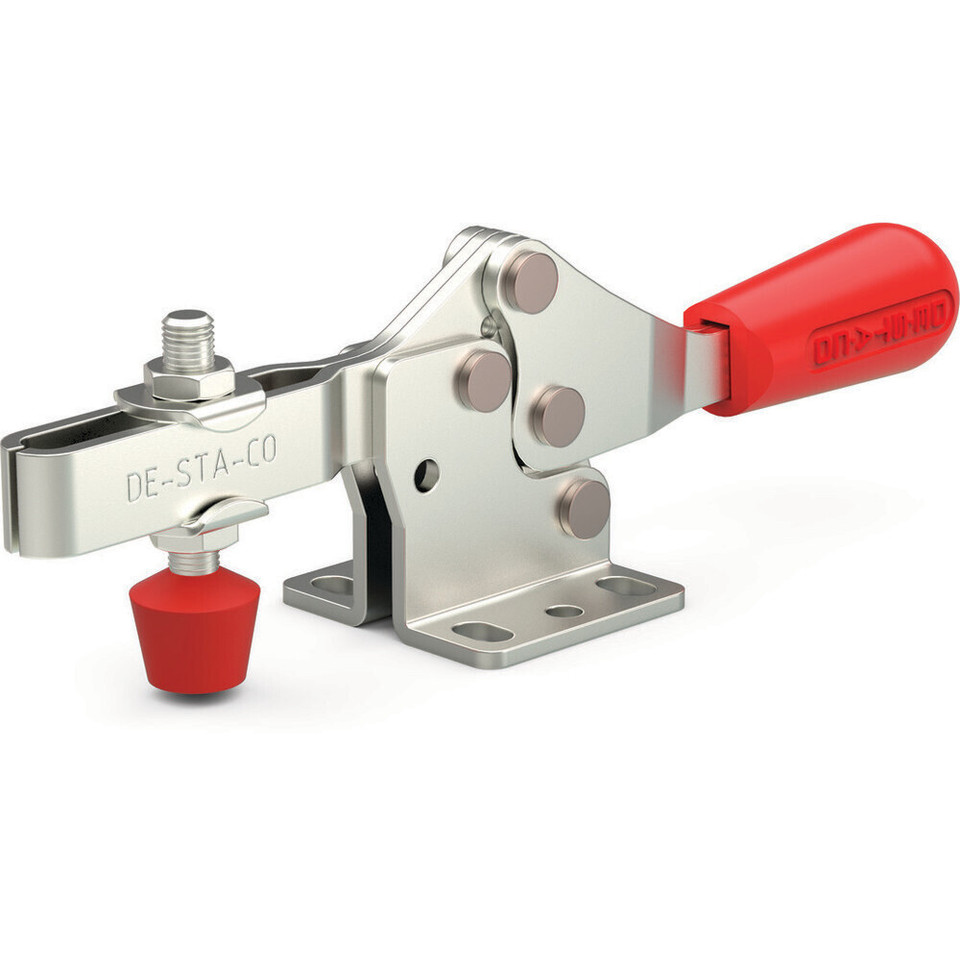

217-U CLAMP HOLD-DOWN ACTION
Description
Unique design gives greater hand clearance between the bar and handle. Models ending in -L feature an open U-bar for attachments of arm extensions.
- Clamp supplied with neoprene spindle
- Low profile
Specifications
-Height Under Clamp Arm (in): 0.92
-Weight (lb): 0.4
-Maximum Holding Capacity (lbf): 200
-Clamp Arm Length (in): 2.31
-Product Function: Clamping
-Clamp Bar Opening (+10°) (degrees): 91
-Product Series: 217
-Handle Opening (+10°): 61
-Duty Cycle: 2
-Standard Material: Steel
-Product Type: Standard
-DistributorGroup :Workholding (Manual, Power and Hydraulic Clamps)
-Clamp Arm Style: U-Bar
-Spindle Assembly: 202208-M
-Flanged Washers: 215105
-Handle: Horizonal
-Base Mounting Style: Flange
-Toggle Lock Plus: No
Features
-Service Environment: Normal
-Application – Welding: Fair/Medium
-Application - Wood-Working: Excellent/High
-Application – Closures: Excellent/High
-Application - Checking Fixtures: Excellent/High
-Application - Food Processing: Fair/Medium
-Application – Machining: Poor/Low
-Application – Assembly: Excellent/High
-Accomodates Workpiece Variation: No
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
