Product Overview

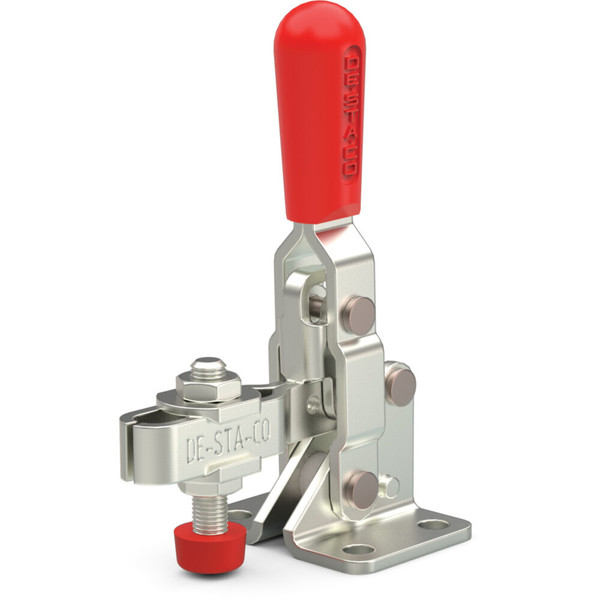

CLAMP HOLD DOWN ACTION
Description
The smallest Destaco series in the vertical handle hold-down range.
- Smallest Vertical Handle Clamp series
- Supplied with neoprene spindle
Ergonomic handle grip included
Specifications
-Material: Steel
-Clamp Arm Length: 1.93 in
-Overall Height (in): 3.08 in
-Overall Length: 2.04 in
-Cap Width (in): N/A
-Tip Material: Neoprene
-Height Under Clamp arm: 0.63 in
-Tip Diameter (in): 0.17in
-Base Mounting Centers (in): .63x.94 in
-Handle: 100 Degrees/ Vertical
-Weight: 0.50
-Thread Size: M5
-Package Includes: 305208-M Spindle (1), 102111 Flanged Washers (2)
-Maximum Holding Capacity (lb): 600lb
-Handle Color: Red
-Product Function: Clamping
-Spindle Assembly: 215208-M
-Bolt Retainer: N/A
-Requires Articulation: Yes
-Product series: 2022/2007
-Clamp Bar Opening (+10 degrees): 75 Degrees
-Duty Cycle: 2
-Handle Opening (+ 10 degrees): 66 Degrees
-Clamp Arm Style: U-Bar
-Base Mounting Style: Flange
-Flanged Washers: 215105
-Toggle Lock Plus: No
Features
-Handle Color: Red
-Application – Closures: Excellent/High
-Application - Food Processing: Not Recommended
-Application - Checking Fixtures: Excellent/High
-Accommodates Workpiece Variation: No
-Application – Machining: Poor/Low
-Application – Welding: Fair/ Medium
-Application – Assembly: Excellent/High
-Application Woodworking: Excellent/High
-Product Type: Standard
-Service Environment: Normal
*Please note that image representation may only represent a product series with particular items. The buyers responsibility is to ensure the product SKU matches their specifications before purchase.
